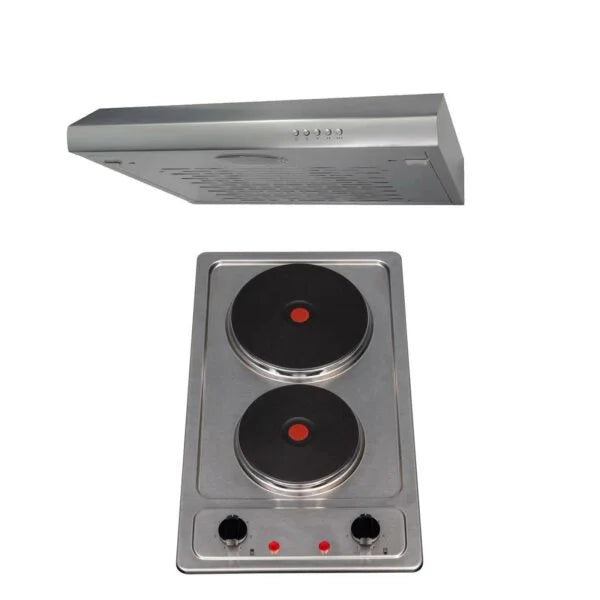

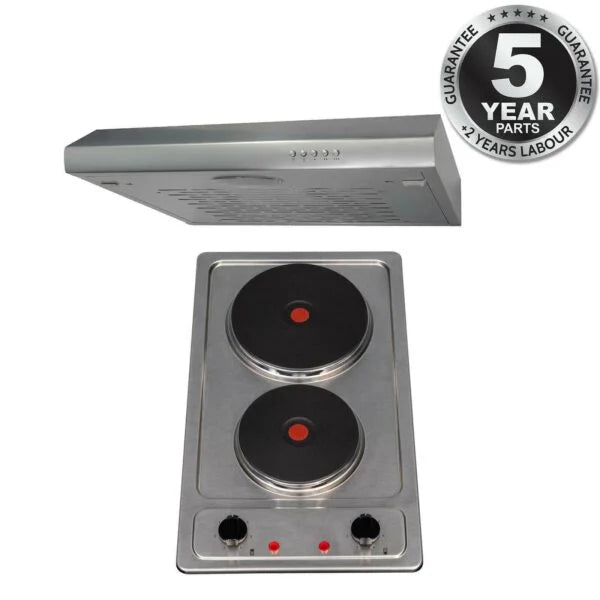

SIA 30cm Stainless Steel 2 Zone Electric Hob & 60cm Visor Cooker Hood Extractor Fan

Product Description

SIA 30cm Stainless Steel 2 Zone Electric Hob & 60cm Visor Cooker Hood Extractor Fan

The PHP301SS-STH60SS package consists of a 30cm domino solid plate electric hob and a 60cm slimline visor cooker hood extractor fan, both finished in brushed stainless steel. With 2 cooking zones of 2 different sizes, front mounted controls and 6 power levels, the hob has everything you need to cook your meals effortlessly. The cooker hood is small in design but powerful, helping you to keep your kitchen clean and fresh whilst maintaining a minimalist look. This set is perfect for those looking for high quality appliances to fit into a small space, such as student accommodation or caravans.

The STH60SS 60cm Visor Cooker Hood Extractor Fan is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.

Guarantee

These products boasts a 5 Year Parts & 2 Year Labour Guarantee* to give you the reassurance you need when buying a new appliance.

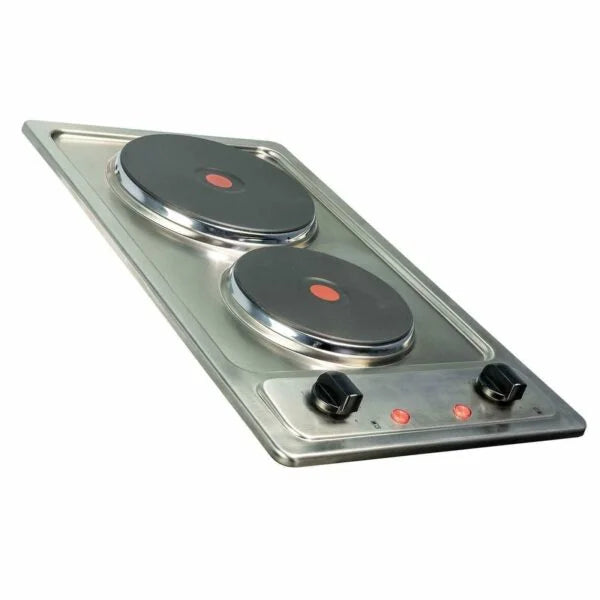

SIA PHP301SS 30cm Stainless Steel Compact 2 Zone Solid Plate Domino Electric Hob

Features

7 step selector switch

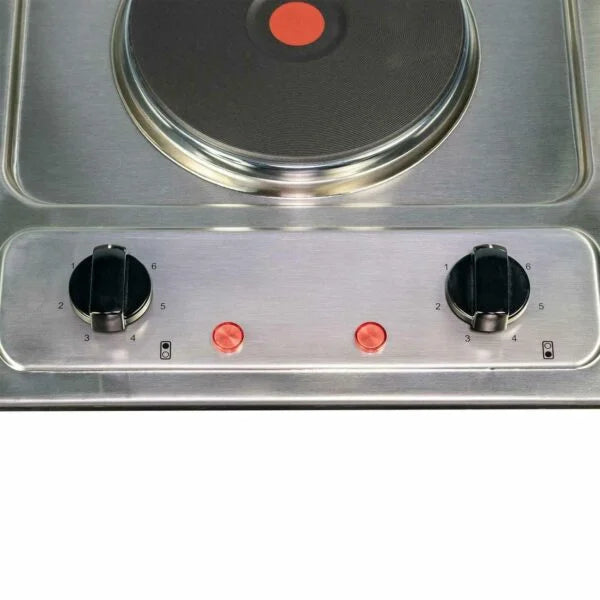

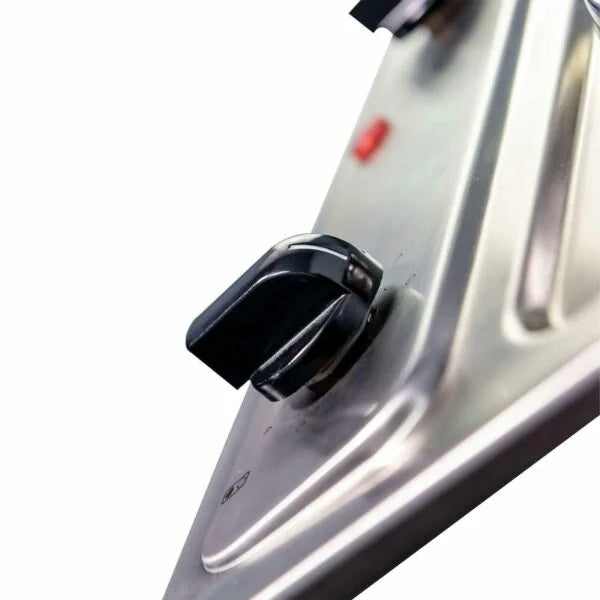

Front dial controls
Easy wipe clean surface

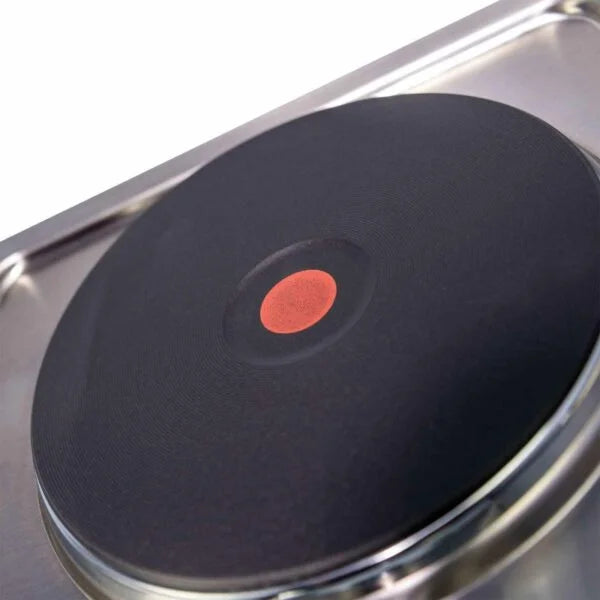

Cooking Zones

Front zone size (mm): 145 | zone power (kW): 1.5
Rear zone size (mm): 185 | zone power (kW): 2.0

Technical Details

Nominal power (kW): 3.5
Fuse rating (A): 15
Product dimensions (mm): W297 x D515 x H76
Cut-out dimensions (mm): W287 x D498
Net / gross weight (kg): 5.0 / 5.6
Please note this appliance does not come with a plug or cable and must be hardwired by a qualified electrician

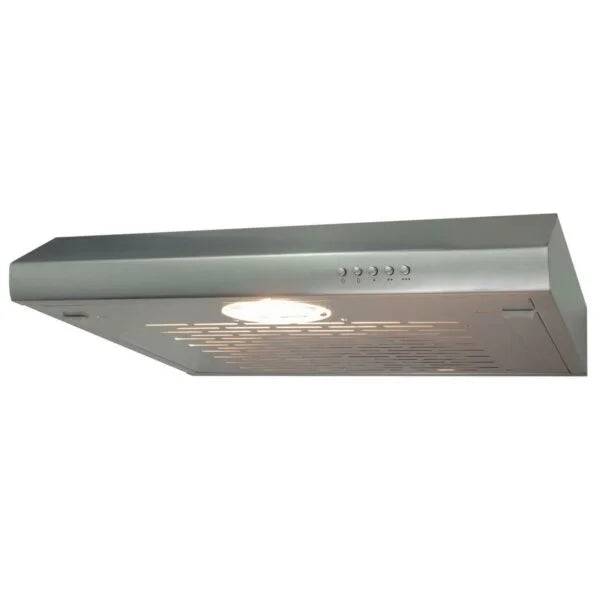

SIA STH60SS 60cm Stainless Steel Slimline Visor Cooker Hood Kitchen Extractor Fan

Features

3 variable speeds

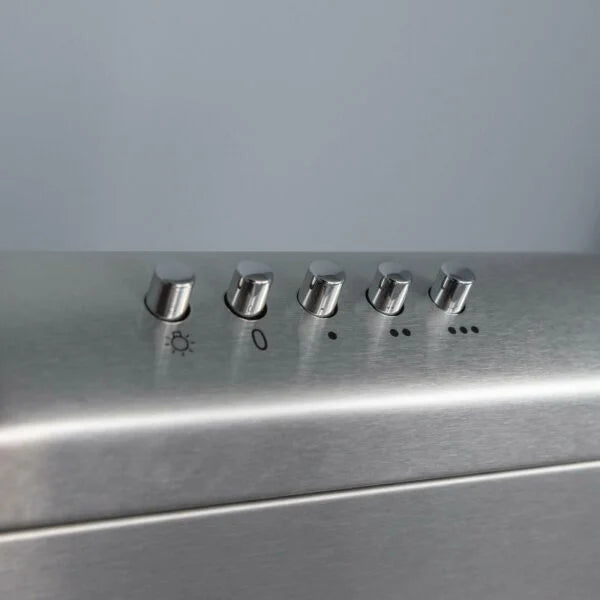

Push button controls
1 x 4W LED lamp
Single fan motor
Ducted or re-circulated installation
Acrylic filter

Optional Accessories

CO6 re-circulation charcoal filters available from our store
D1 & D3 external ducting kits available from our store

Fitting Notes

Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over electric hob (mm): 650

Technical Specifications

Ducting outlet diameter (mm): 125
Extraction rate (m³/hr): 250
Noise level (dBa): 65
Fuse rating (A): 3
Product dimensions (mm): W600 x D470 x H100
Net / gross weight (kg): 4.8 / 5.6
Power (W): 68
Mains lead length (m): 1

Single Units of this pack

1. 60cm Stainless Steel Kitchen Extractor Fan / Visor Cooker Hood - SIA STH60SS

Please note that there is no plug supplied with this product.
*Guarantee subject to Online Registration within 30 days of purchase.
