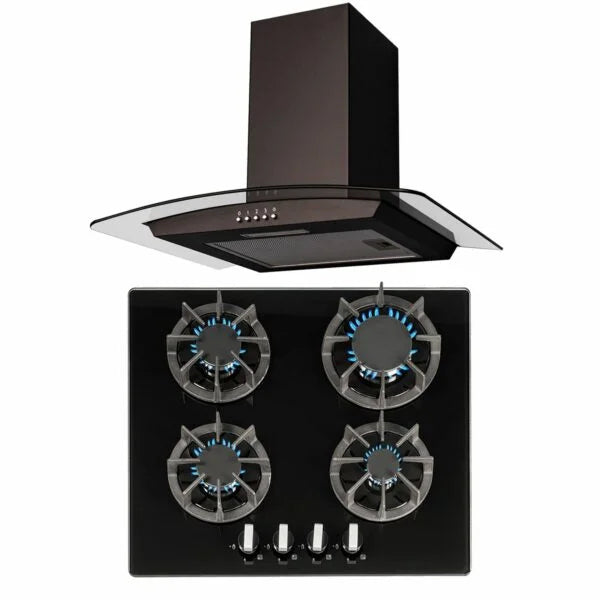

SIA R7 60cm 4 Burner Glass Hob & Curved Glass Cooker Hood

The SIA R7 60cm 4 Burner Glass Hob & Curved Glass Cooker Hood. These appliances have been chosen as they complement each others design and will fit in with any kitchens décor. The hob provides plenty of cooking power for all of your culinary adventures and the cooker hood will help you keep your kitchen clean and fresh.

The R7 gas hob features a flame failure safety device (FFD), which stops the flow of gas when a flame goes out, preventing gas leaks. The LPG conversion kit is a set of small brass jets that allow you to convert the hob to use bottled butane or propane, if you do not have access to a natural gas connection.

The CGH60BL curved glass cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.

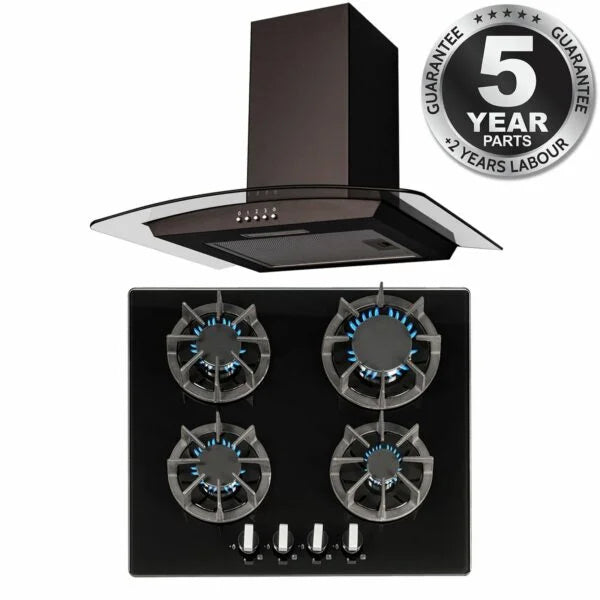

Guarantee of SIA R7 60cm 4 Burner Glass Hob & Curved Glass Cooker Hood

These products come with a 5 Years Parts & 2 Years Labour Guarantee* to give you the reassurance you need when buying a new appliance.

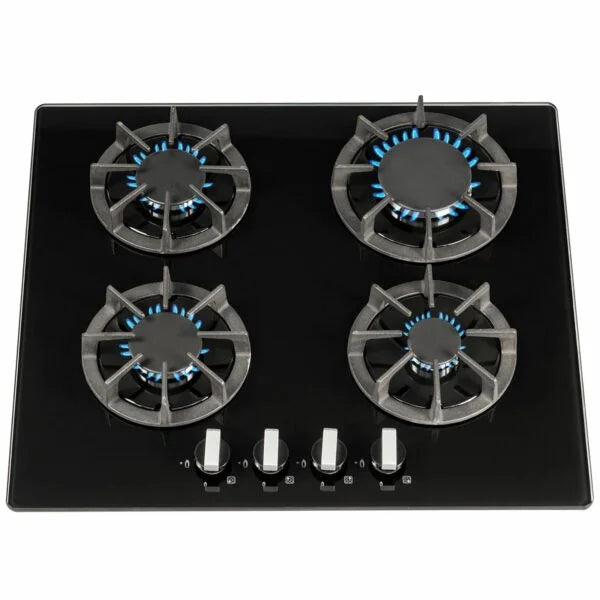

SIA R7 60cm Black 4 Burner Glass Hob With Cast Iron Pan Stands

Features

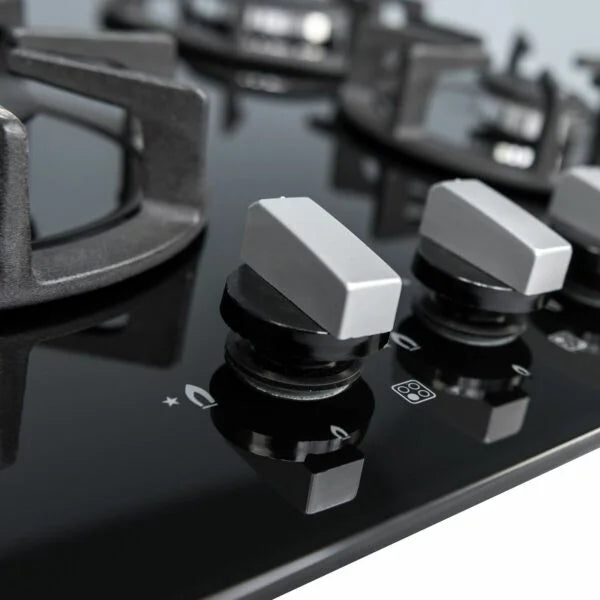

Front dial controls

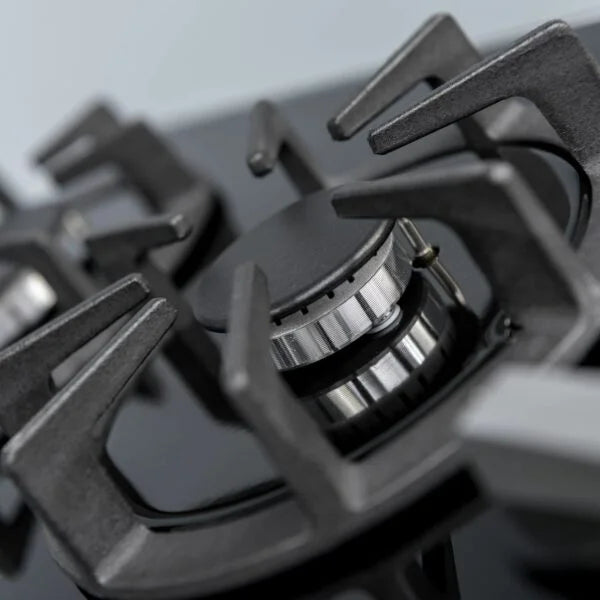

Heavy-duty cast iron pan stands and burner caps
Flame failure safety device
LPG conversion kit included
Easy clean glass surface
Automatic ignition

Burners

Front left burner – semi-rapid (kW): 1.75
Rear left burner – semi-rapid (kW): 1.75
Front right burner – auxiliary (kW): 1.0
Rear right burner – rapid (kW): 3.0

Technical Specifications

Nominal power (kW): 7.5
Fuse rating (A): 3

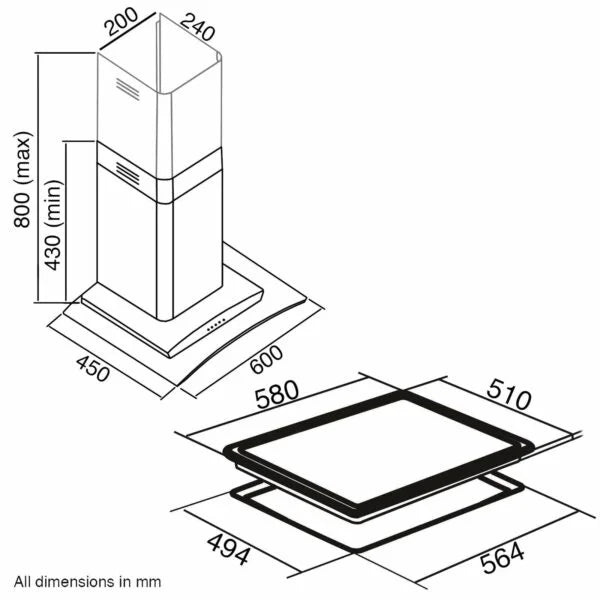

Product dimensions (mm): W580 x D510
Cut-out dimensions (mm): W557 x D477
Net / gross weight (kg): 10.5 / 12
Mains lead length (m): 1
Gas inlet: ½ inch male threaded connection
Please note this appliance must be installed by a Gas Safe engineer.

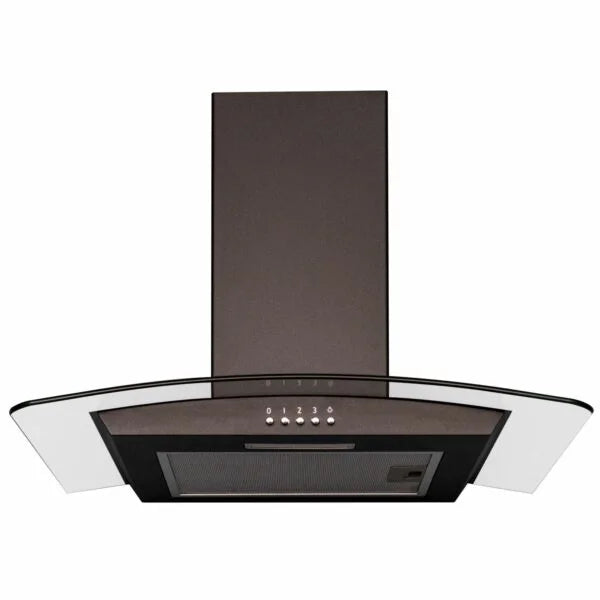

SIA CGH60BL 60cm Black Curved Glass Chimney Cooker Hood Kitchen Extractor Fan

Features

3 variable speeds

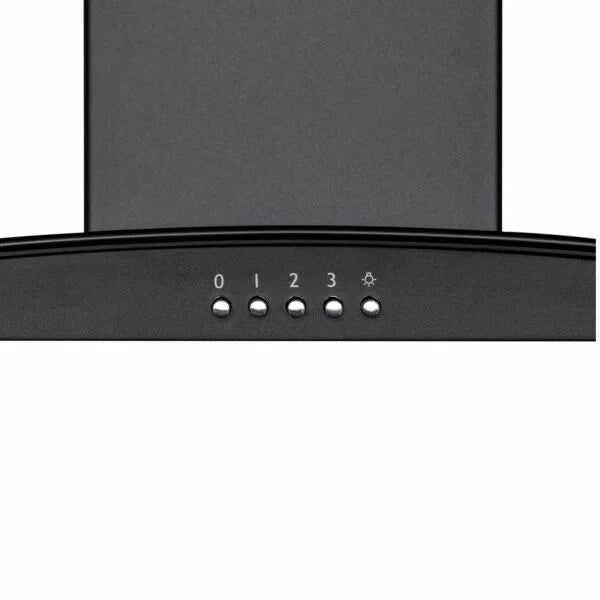

Push button controls
1 x 1W LED light
Single fan motor
Ducted or re-circulating installation
1 x dishwasher safe aluminium grease filter
2 x telescopic chimney sections

Optional Accessories

SIA2 re-circulation charcoal filters available from our store
D5 & D7 external ducting kits available from our store

Fitting Notes

Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over gas hob (mm): 750

Technical Specifications

Ducting outlet diameter (mm): 150
Extraction rate (m³/hr): 400
Noise level (dBa): 65
Fuse rating (A): 3
Product dimensions (mm): W600 x D450 x H430-800
Height of chimney sections (mm): 400 + 400
Net / gross weight (kg): 8.0 / 10.0
Power (W): 26
Mains lead length (m): 1

Single Units of this Pack

Please note that there is no plug supplied with this product.
*Guarantee subject to Online Registration within 30 days of purchase.
